Interface de Áudio USB Q-24/Q-12/Q-22 48V Phantom

R$ 439,90

em até 12x de R$ 36,65 no cartão R$ 417,91 à vista no Pix Frete grátis para todo o Brasil

Frete grátis para todo o Brasil, sem valor mínimo

Pagamento por Pix, boleto ou cartão em até 12x

7 dias para desistir da compra, conforme o CDC

Dúvida antes de comprar? Chama no WhatsApp

Descrição

SPECIFICATIONS

Brand Name: abdo

Built-in Battery: No

Certification: CE,FCC,RoHS

High-concerned chemical: none

Model 1: Q-24 Audio Interface

Model 2: Q-22 Audio Interface

Model 3: Q-12 Audio Interface

Model Number: Q-24 Audio Interface Sound Card

Origin: Mainland China

Type: Mixers

support: dropshipping

Q-24 Q-12 Q-22 Professional USB Audio Interface Sound card With Monitor Electric Guitar Recording 48V Phantom Power Sound Mixer

【Dual Microphone Interface】The sound card has two microphone input interfaces, both of which support MIC (XLR)/LINE (TRS) input for connecting microphones or digital musical instruments, providing excellent recording quality, dynamic response and rich low frequency.

【RCA input and output】This product provides RCA input and output interface, you can use it to choose more input and output sources, such as input accompaniment. It also provides volume balance adjustment for input accompaniment and microphone, as well as internal recording function

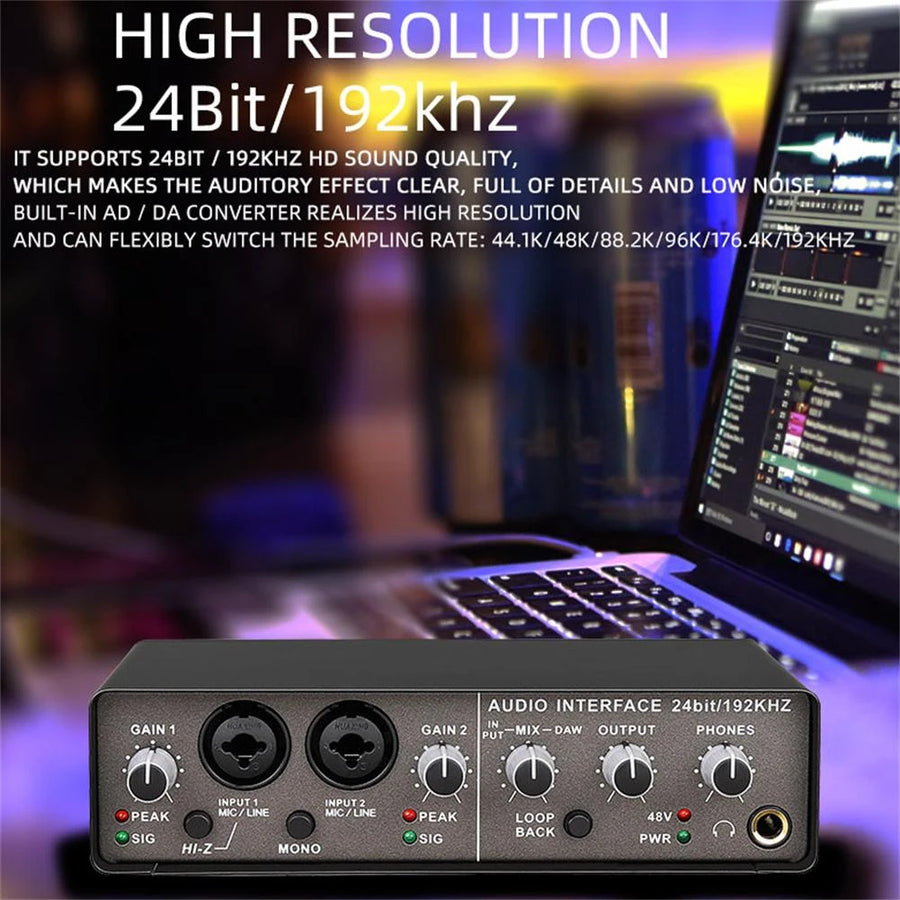

【24-bit/ 192kHz】The device has 24-bit/ 192kHz audio resolution, high-quality conversion is the key to achieve high-quality audio, which can make your recordings clearer and better.

【Ultra-low-latency listening】Have a headphone jack, which can provide ultra-low-latency listening function, each port has a separate knob control, you can adjust the appropriate volume at any time

【Easy to use】 The product does not need to install complicated drivers, and the product can be used directly by connecting the supporting USB to the product and computer. (Note: If you want to record, you need to download and use the recording software on your computer. This product supports all free recordings. software and racks)

Specification:
MIC INPUT 1-2 (balanced):
Frequency response: -1 / -1 dB, 20 Hz - 20 kHz
Dynamic Range: 82 dB, A weighting
THD+ N 0.03 %, 1 kHz
Maximum input level: +6 dBu Input resistance 4 kΩ
Gain range: +3 dB- +60dB
HI-Z INPUT 2 (Unbalanced)
Maximum input level: +3.0 dBV
Input resistance: 1 MΩ
Gain range: 0dB - +40 dB
LINE INPUT 1/2 (balance)
Maximum input level: + 10 dBu
Input resistance: 18.5 kΩ
Gain range: -10 dB - +40 dB
MAIN OUTPUT (Impedance balance):
Frequency response: -1 / -1 dB, 20 Hz - 20 kHz
Dynamic Range: 82 dB, A weighting
THD + N 0.03 %,1kHz,
Maximum input level: + 6 dBu
Input resistance 100 kΩ
PHONES:
Maximum input level: 15 mW + 15 mW, 40Ω
USB:
Technical specifications: full speedUSB 2.0, 24-bit,44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz
XLR INPUT:
Polarity: 1 Grounding 2: Hot wire (+) 3: Cold wire (one)
Power requirements: > 5W

Please note:
As shown below:
Turn off the return to listening in the PC volume mixer, otherwise the sound will be repetitive and accompanied by severe distortion.
After closing, click: Apply, and then click: OK.
The setting is completed.

No sound
Confirm whether the correct USB cable is used. Be sure to use the included USB cable.
Is the volume control of this device set to the correct level?
Confirm the [OUTPUT] knob and [PHONES] knob.
Are the microphone and speakers properly connected to the device?
Please refer to the ;Manual; to confirm the correctness of the connection.
Is the power switch of the speaker turned on?
Make sure the switch of the speakers is turned on.

Package Contents:
1 x USB Audio interface
1 x Type A to B High Speed Cable
1 x User Manual
